MESSBOI 25 Cable Measuring Device

The MESSBOI 25 Cable Measuring Device is a bench mounted mechanical length measuring device for winding materials up to a max outer diameter of 25mm. Accuracy of this Measuring Device is +/- 0.5%.

Category:
  1. General Details

    MESSBOI 25 Cable Measuring Device:

    The MESSBOI 25 Cable Measuring Device is a mechanical length measuring device for winding materials up to a max outer diameter of 25mm and impresses with its extremely high measuring accuracy, compact design and simple operation.

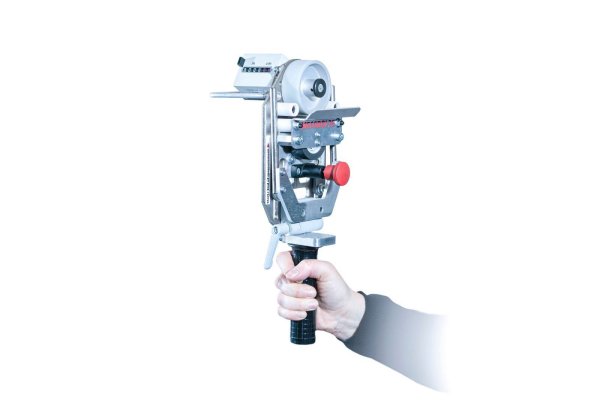

    This Cable Measuring Device is bench mounted, there is a Socket & Roller Cage available for additional stability of the cable being measured through the Cable Measuring Device and also a Hand Grip for portable usage.

  2. Technical Data

    MESSBOI 25 Cable Measuring Device Technical Data:
    Cable Diameters Range: 2-25mm
    Maximum Measuring Length: 9999.99m
    Measuring Accuracy: +/- 0.5%
    Dimensions: 120 x 160 x 350mm
    Weight: 1.5Kgs
    Product Order Code: MCKM-MES25
