- MATBOI Cable Coil Storage/Unwinding System
MATBOI Cable Coil Storage/Unwinding System
The MATBOI Cable Coil Storage System has been designed mainly for use in workshops or production areas. The MATBOI allows for clearly ordered Coil storage.
- General Details
MATBOI Cable Coil Storage System
The MATBOI Cable Coil Storage System has been designed mainly for use in workshops or production areas. The MATBOI allows for twist-free material unwinding, simultaneous measuring and cutting to length of winding material such as Cables, Tubes or profiles wound on commercial coils are possible. The coils are stored clearly and are ready for unwinding.
The unwinding and storage plates for larger coils can be slid sideways via the swivel arms, this ensures easy storage and removal of the large coils. A central adjustment of the clamping bolts assure a simple and continuous tension of the coils.
An additional bouncing protection consisting of border bolts and cover plate avoids against bouncing of single winding layers. The coil unwinding plates are made of winding friendly surfaces and are equipped with a brake to prevent the material from an unconditional material flow during the unwinding process.
• Mobile storage device
• Length measurement possible
• Easy assembly and removal of the coils (coils are stored separately)
• Possible combinations with the SPULBOI Cable Spool Storage System – Please contact us with Spool & Coil sizes.

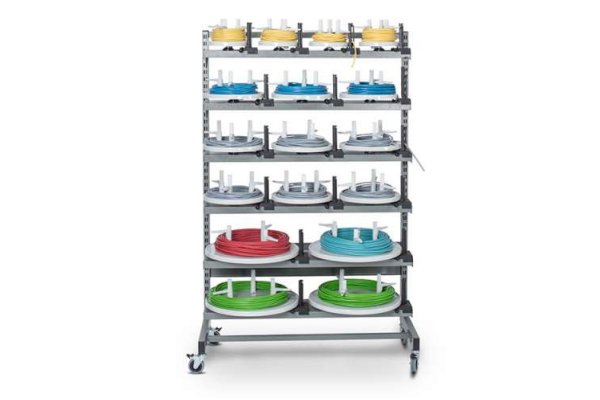

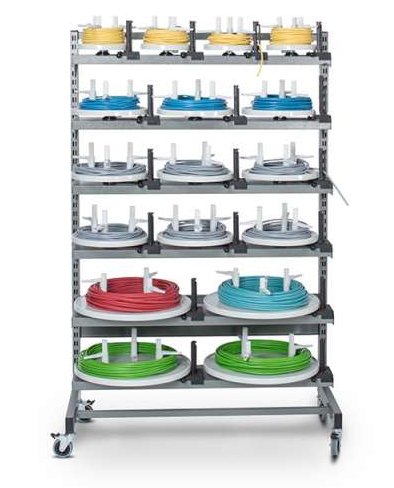

Model Number MATBOI-S Photo Weight 100Kgs Dimensions (HxWxD) 1780 x 1040 x 700mm Standard MATBOI consists of the following (as per photo) 1 x Storage Rack 650 Mobile KM85101500 2 x MATBOI 450T Coil Storage KM85100159 3 x MATBOI 300T Coil Storage KM85100157 1 x MATBOI 200T Coil Storage KM85100155 Complete Standard MATBOI Part Number MCKM-MATBOI-S
- Storage Rack/Wall Profile Rail
Model Number Storage Rack 650 Mobile Attachment Piece for
Wall Profile Rail
Photo - Max Loading Capacity 200Kgs - - Dimensions (HxWxD) 1780 x 1040 x 700mm 60 x 30 x 315mm 980 x 30 x 13mm Weight 42Kgs - 1Kgs Part Number KM85101500 KM86181001 KM85100201 Info Includes 4 Rollers with Brake Complete unit including clamping rail and screws to extend storage rack about 300mm For mounting SPULBOI and MATBOI units Note - Not suitable for MATBOI 480T and 650T units Not suitable for MATBOI 480T and 650T units
- Horizontal Cable Coil Storage Options
Model Number MATBOI 200T MATBOI 300T MATBOI 450T Photo Plate OD 200mm 300mm 450mm Max Coil OD 190mm 290mm 440mm Height of Centering Pins 110mm 110mm 110mm Core Adjusting Range 80-150mm 90-180mm 150-250mm Max Coil Weight 8Kgs 10Kgs 12Kgs Weight 8.6Kgs 9.2Kgs 10.2Kgs Part Number KM85100155 KM85100157 KM85100159 Info All 3 of the above come supplied with mounting brackets for mounting of the MESSBOI 10H Measuring Device in front of each Coil Plate
- Large Horizontal Coil Storing Units & Bouncing Protection Options
MATBOI Large Coil Storing Units
Model Number MATBOI 480TL MATBOI 480TR MATBOI 650TL MATBOI 650TR Photo Type of Swivel Arm Left Right Left Right Coil Plate OD 480mm 480mm 650mm 650mm Max Coil Size 470mm 470mm 640mm 640mm Height Centering Pins 250mm 250mm 250mm 250mm Core Adjusting Range 140-320mm 140-320mm 180-500mm 180-500mm Max Coil Weight 20Kgs 20Kgs 20Kgs 20Kgs Part Number KM85101502 KM85101503 KM85101505 KM85101506
Bouncing Protection for MATBOI 480T/650T
Model Number Bouncing Protection for MATBOI 480T Bouncing Protection for MATBOI 650T Photo Max Cover Plate OD 480mm 650mm No of Border Pins 5 5 Height of Border Pins 305mm 305mm Max Coil Height 230mm 230mm Weight 7.3Kgs 10Kgs Weight of Cover Plate 2.7Kgs 3.8Kgs Part Number KM85101504 KM85101507
- Length Measuring Device & Accessories

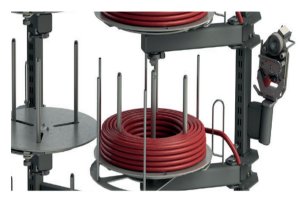

Model Number MESSBOI 10H MESSBOI 25 MESSBOI 25 Holder at MATBOI Storage Rack Photo Cable Diameters 1-15mm 2-25mm - - Measuring Force Spring Pressure Spring Pressure - - Measuring Length 9999.99m 9999.99m - - Measuring Accuracy +/- 2% +/- 0.5% - - Dimensions (LxWxH) 260 x 110 x 140mm 120 x 160 x 350mm - - Weight - 1.4Kgs - - Part Number MCKM-MES10H MCKM-MES25 KM85101002 -
