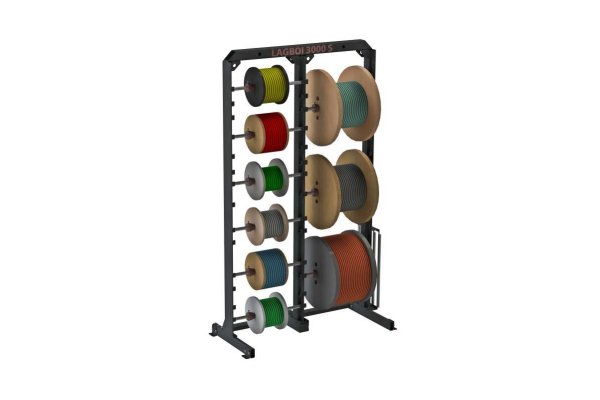

LAGBOI 2200S/3000S Static Cable Drum Rack/Unwinding System

The LAGBOI 2200S/3000S Static Cable Drum Rack and Unwinding System consists of pre-assembled modules (frame & storage bars) for space-saving cable drum storage.

  1. General Details

    LAGBOI 2200S/3000S Static Cable Drum Rack/Unwinding System

    The LAGBOI 2200S/3000S Static Cable Drum Rack and Unwinding System consists of pre-assembled modules (frame & storage bars) and can be assembled to a solid, clearly ordered, space-saving and very useful rack and unwinding device. This system can only be used for manual unwinding.

    Features:
    • Variable equipping possibilities
    • High stability
    • High surface protection (Powder Coated)

    We do also have a Moveable Cable Drum Storage/Unwinder System available here.

  2. Cable Drum Rack/Unwinding System Specifications
    Model NumberLAGBOI 3000SLAGBOI 2200S
    Max Loading Capacity3000Kgs3000Kgs
    Drum Axle Dimensions34mm OD x 840mm Long inc Centering Cones and Locking Screws
    Weight250Kgs200Kgs
    Dimensions (HxWxD)3080 x 2000 x 980mm2170 x 2000 x 980mm
    Equipping Possibilities Depending on Cable Drum Sizes:
    Opt 112 x 400mm OD Drums
    2 x 6 Axles
    8 x 300mm OD Drums
    2 x 4 Axles
    Opt 28 x 600mm OD Drums
    2 x 4 Axles
    6 x 600mm OD Drums
    2 x 3 Axles
    Opt 36 x 800mm OD Drums
    2 x 3 Axles
    4 x 900mm OD Drums
    2 x 2 Axles
    Opt 44 x 1000mm OD Drums
    2 x 2 Axles
    -
    Part NumberMCKM-LAG3000SMCKM-LAG2200S
