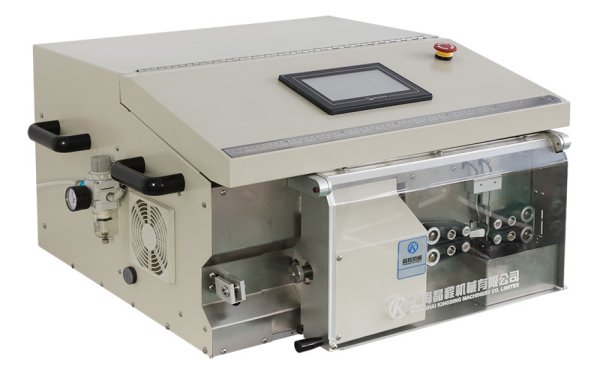

KS-W88* Series of Automatic Coax Cable Cut & Strip Machines
The KS-W88* Series of Automatic Coax Cable Cut & Strip Machine range is capable of processing between 0.6 and 5.5mm O.D.
- General Details
KS-W88* Series of Automatic Coax Cable Cut & Strip Machines:
The KS-W88* Series of Automatic Coax Cable Cut and Strip Machine are designed to strip a maximum of 3 layers from Coaxial Cables. These machines have a 3 step stripping function. The KS-W88* Series of Auto Cut and Strip Machines are designed for cutting and stripping small coax cables up to 5.5mm outer diameter.
The KS-W88* Series of Coax Cable Cutting and Stripping machines are also supplied with a set of guide tubes, comprehensive user manual, wire straightener, hard tungsten steel blades and a full 1 year return to base warranty.
- Technical Data
KS-W88* Coax Cable Cut & Strip Machines Technical Data Model Number: KS-W881 KS-W882 KS-W885 Suitable Material: Coaxial Cable, Triaxial Cable, Shielded Cable, TV Signal Cable, Audio Cable etc. Blade Quantity: 2 Pcs 2 Pcs 2 Pcs Cable Size: 0.6-4.0mm O.D. 1.0-5.5mm O.D. 0.81-3.5mm O.D. Stripping Length: Min Cut Length: 18mm (with 12mm insulation, half strip).
Min Cut Length: 20mm (with 14mm insulation, full strip).Leading End: No Limit
Trailing End: Max 40mmMin Cut Length: 14mm (with 12mm insulation, half strip) Production: 500-800pcs/hour 500-800pcs/hour 500-800pcs/hour Max Stripping Layers: 8 6 9 Stripping Tolerance: +/- 0.01mm +/- 0.01mm +/- 0.01mm Blade Material: Tungsten Steel Tungsten Steel Tungsten Steel Required Air Supply: 0.4-0.6Mpa (4-6 Bar) 0.4-0.6Mpa (4-6 Bar) 0.4-0.6Mpa (4-6 Bar) Power Rating: 700W 800W 800W Voltage: 220V/50Hz
(110V/60Hz)220V/50Hz
(110V/60Hz)220V/50Hz
(110V/60Hz)Weight: 100Kgs 120Kgs 120Kgs Dimensions: 650 x 660 x 400mm 609 x 690 x 400mm 609 x 690 x 400mm Product Order Code: MCKS-W881 MCKS-W882 MCKS-W885 - Product Video
