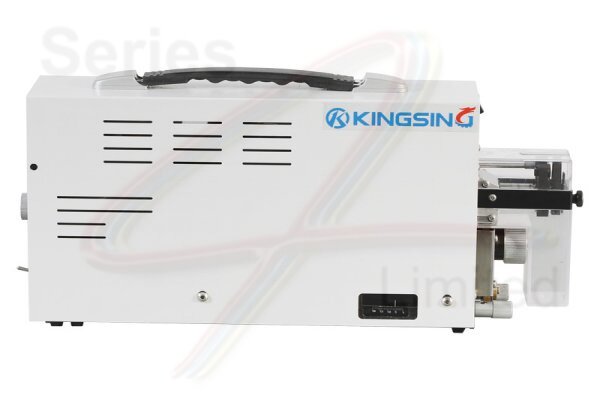

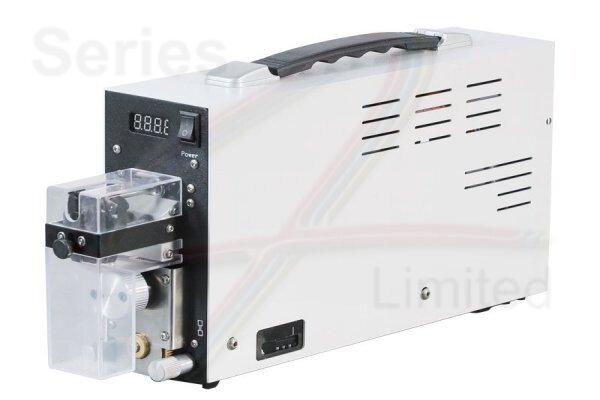

*NEW* KS-W3361 Electrical Wire Stripping Machine

The KS-W3361 Electrical Wire Stripping Machine is suitable for processing single conductors and inner conductors from multi-core cables up to 4.2mm OD.

  1. General Details

    KS-W3361 Electrical Wire Stripping Machine

    The KS-W3361 Electrical Wire Stripping Machine is a small sized Electric Wire Stripping Machine that is widely used in the Wire Harness Processing industry. This compact Electrical Wire Stripping Machine is capable of processing wires up to 4.2mm OD with stripping lengths up to 20mm. The KS-W3361 Electrical Wire Stripping Machine can also be set up for full stripping or half/partial pull off stripping.

    Available Wire Types: Discrete Wire, Solid Wire, Stranded Wire, Single Conductor Cable, Wire, Cable, Rubber, PUR, PVC, Teflon, Tefzel etc.

  2. Technical Data

    KS-W3361 Electrical Wire Stripping Machine Technical Data:
    Min/Max Wire Size: 0.03-4.0mm² (22-12 AWG)
    Max Cable Size: 4.2mm O.D.
    Diameter Setting Accuracy: 0.01mm
    Max Stripping Lengths: 20mm
    Wire Stripping Accuracy (Full Stripping): +/- 0.5mm
    Wire Stripping Accuracy (Partial Stripping): +/- 0.6mm
    Processing Time: 0.5s
    Power Supply: AC220V/50Hz (Available in 110v/60Hz on request)
    Power Rate: 120W
    Operating Temperature: 0-40°C
    Environment Humidity: 30%~80% RH (No condensation at 40°C)
    Dimensions: 380 x 85 x 188mm
    Net Weight: 4.5Kgs

    Product Order Code:
    MCKS-W3361 – KS-W336 Electrical Wire Stripping Machine
