KS-T809 Electric Terminal Crimper

The KS-T809 Electric Terminal Crimping Machine is suitable for a wide variety of loose piece terminals. Max crimping size of 5.5mm² and crimping force of 1.7KN.

  1. General Details

    KS-T809 Electric Terminal Crimper:

    The KS-T809 Electric Terminal Crimper is a flexible bench top machine capable of crimping a wide range of connectors and offering superb value for money. Various die sets are available for this Terminal Crimper and the Die Set storage drawer allows for storage of up to 8 die sets for quick and easy access to changing the die sets for various crimp terminals.

    Special Crimping Die Sets can also be manufactured if required, please contact us for more information.

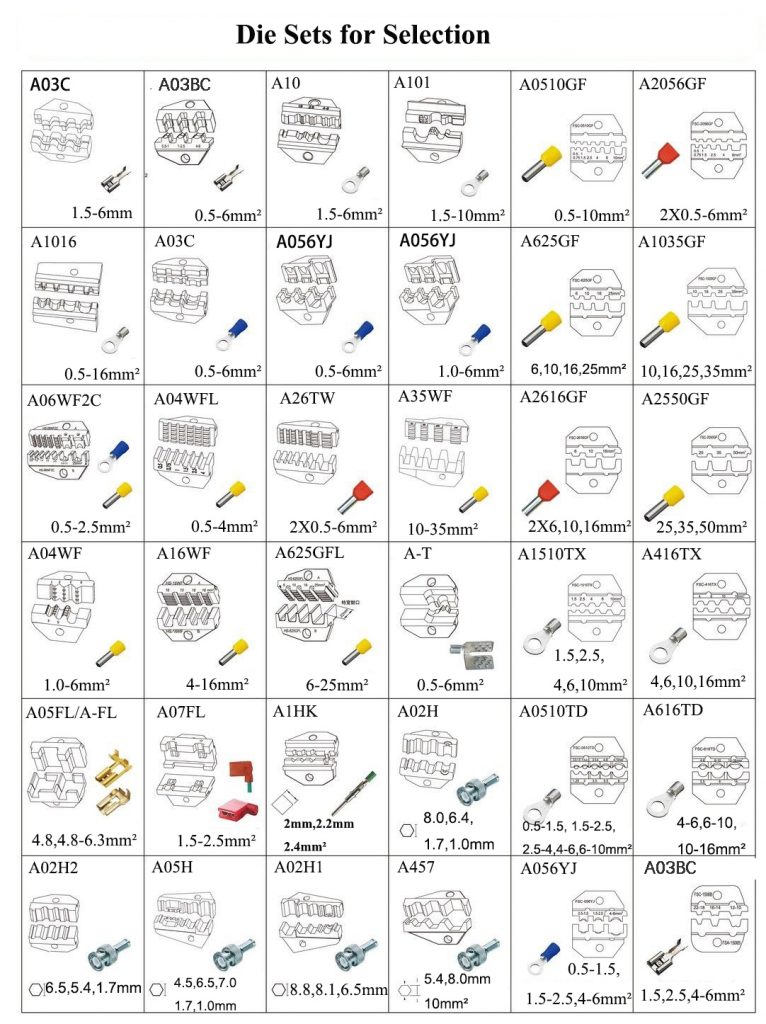

  2. Die Set Options

    1 Die Set, of the customers choice, from the list below will be supplied free of charge with the crimper.

  3. Technical Data

    KS-T809 Electric Terminal Crimper Technical Data:
    Max Terminal Crimping Size: 5.5mm²
    Crimping Force: 1.7KN
    Crimping Time: 1.5-1.8secs
    Power Supply:  AC110-125V/60Hz, AC200-230V/50Hz
    Power Rating: 90W
    Weight: 18Kgs
    Dimensions: 325 x 265 x 150mm
    Product Order Code: MCKS-T809 – KS-T809 Electric Terminal Crimper
