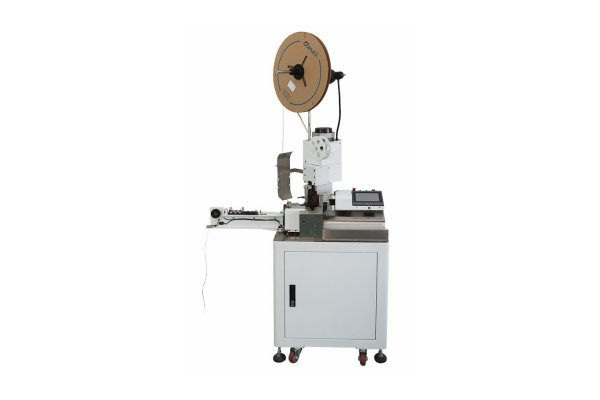

KS-T502 Automatic Cutting, Stripping & Crimping Machine

The KS-T502 Automatic One Sided Cut, Strip & Crimp Machine will process wires 0.08-2.5mm² (13-28 AWG).

  1. General Details

    KS-T502 Automatic Cut, Strip and Crimp Machine:

    Introducing the New KS-T502 Automatic Cut, Strip and Crimping Machine. This new cut, strip and crimping machine is capable from processing between 0.08 and 2.5mm². This new machine has an integrated function of cutting and stripping the wires at both end with one side of the wire being twisted and crimper, this machine offers a wide range of applications. The Crimp Applicator is manufactured to suit the customers’ crimp terminals (we will require photos/datasheets for each crimp terminal). This Cut, Strip & Crimp Machine will cut and strip both ends of the wire and also crimp on the trailing end. This machine is capable of processing up to 5000pcs per hour. The Cutting & Stripping Length, along with the Crimping Force are controlled by a stable system and all parameters are saved in the LCD Operating Screen.

    Crimping applicators can be manufactured to suit both side feeding crimp terminals and rear feeding crimp terminals. If you already have a Crimping Applicator (JST, Molex, AMP etc) please contact us regarding having this machine modified to suit your applicator.

    This crimping machine can be modified with a vibration plate to allow feeding of loose crimp terminals if required.

  2. Technical Data

    KS-T502 Automatic Cut, Strip & Crimping Machine Technical Data:
    Min/Max Wire Size: 0.08-2.5mm² (13-28 AWG)
    Cutting Length: 20-1500mm
    Stripping Lengths: 0-12mm
    Cutting & Stripping Accuracy: +/- 0.002mm x Length
    Crimping Force: 2 Ton
    Display: 5.7″ Touch Screen
    Production/Speed: 4000-5000pcs/hour
    Required Air Pressure: 0.5-0.6Mpa (5-6 Bar)
    Voltage: 220V/50Hz (110V/60Hz)
    Power Rating: 750W
    Weight: 210Kgs
    Dimensions: 700 x 600 x 1500mm

    Product Order Code:
    MCKS-T502 – KS-T502 Automatic Cut, Strip and Crimp Machine
