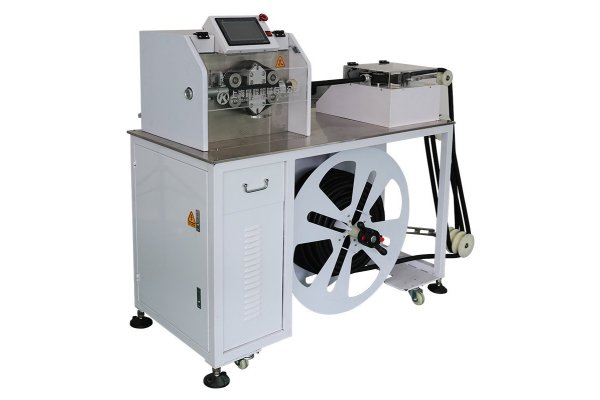

KS-P530F Automatic Tube Cutting Machine

The KS-P530F Automatic Tube Cutter is capable of processing between 4mm and 28mm O.D Corrugated/Convoluted Tubing.

  1. General Details

    KS-P530F Automatic Tube Cutting Machine:

    Introducing the new KS-P530F Automatic Tube Cutting Machine. This automatic tube cutting machine is suitable for various kinds of plastic, corrugated and other PVC tubing. The model KS-P530F Tube Cutter has a built in tube feeding system under its own casing and this machine can also process up to 28mm diameter. These cutting machines are driven by high quality stepping motor which makes this machine fast and stable.

  2. Technical Data

    KS-P530F Tube Cutting Machine Technical Data:
    Tubing Size: 4-28mm O.D.
    Cutting Length: 0.1-9999.9mm
    Speed/Production: 100pcs/min (Length = 100mm)
    Cutting Tolerance: +/- 0.1mm
    Power Rating: 1500W
    Power Supply: 220v/50Hz (110v/60Hz)
    Weight: 400Kgs
    Dimensions: 1770 x 660 x 1550mm

    Product Order Code:
    MCKS-P530F – Automatic Tube Cutting Machine (with feeding system)
