- General Details

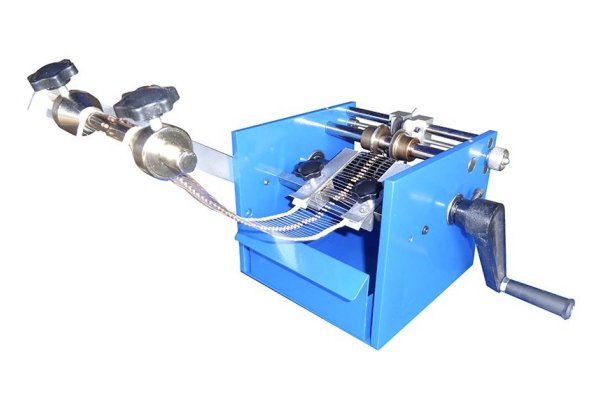

KS-F130 Hand-Crank Component Cut & Bend Machine:
The KS-F130 is an extremely low priced hand-cranked Axial Component Cutting and Bending Machine. This unit offers the very best balance of economy, quality, very compact and solid design to easily form and cut taped axial components.
It is possible with the KS-F130 Axial Component Cut & Bend Machine to process up to 60,000 pieces per hour on this efficient system and it has the advantage of easy maintenance and very simple adjustment and operation. This standard model is suitable for components with a lead diameter of 0.35-1mm.
This new Component Cut & Bend Machine is an excellent replacement for the obsolete VB CUTBEND Machine.
- Specifications (F130U)
KS-F130U Specifications A = 6-40mm B = 3.6-15mm C = 1.2mm D = 1.5-8mm W = 0.35-1mm Product Order Code: MCKS-F130U
- Specifications (F130F)
KS-F130F Specifications A = 4-15mm B = 1-15mm C = 3mm D = 1.5-8mm W = 0.35-1mm H = 25mm P = 3-13.5mm Product Order Code: MCKS-F130F
- Technical Data
KS-F130 Hand-Crank Component Cut & Bend Machine Technical Data:
Dimensions: 200 x 180 x 200mm
