KS-A230 Series of Wire Twisting Machines

These New Wire Twisters are electrically operated unit for the manufacture of twisted cables in pairs, triples etc.

Category:
  1. General Details

    KS-A230 Series of Wire Twisting Machines:

    Introducing the Brand New KS-A230 Series of Wire Twisting Machines. These New Wire Twisters are electrically operated unit for the manufacture of twisted cables in pairs, triples etc. The work piece is held in the hand at the other end and twisting is started by depressing the attached foot pedal which is supplied by a long reach power cord.

    3 Different models are available in the KS-A230 Series. The A231 is the standard 1 wire twisting spindle machine, the KS-A232 has 2 wire twisting spindles (as per product photo) and the KS-A235 has 5 wire twisting spindles.

    As the KS-A230 Series of Wire Twisting Machines adopts an LCD Display, this machine is easy to program. 99 sets of programs can be stored in the memory settings of these machines for future usage.

    Features:
    Clockwise & Anti-Clockwise Twisting
    Fast Start
    Low Noise
    High Operation Speed

  2. Specifications
    Model Number:KS-A231KS-A232KS-A235
    Wire Holders:125
    Rotating Speed:300-5500rpm300-5500rpm300-5500rpm
    Available Wire Size:1.2mm - Other sizes are available on request
    Twisting Direction:Clockwise
    Anti-Clockwise    		Clockwise
    Anti-Clockwise    		Clockwise
    Anti-Clockwise
    Twisting Mode:Max 20 SetsMax 20 SetsMax 20 Sets
    Twisting Cycle:1-99991-99991-9999
    Memory Function:999999
    Slow Starting Mode:9 Sets9 Sets9 Sets
    Display:LCD ScreenLCD ScreenLCD Screen
    Power Supply:220V/50Hz
    (110V/60Hz)    		220V/50Hz
    (110V/60Hz)    		220V/50Hz
    (110V/60Hz)
    Power Rating:100W100W100W
    Net Weight:15Kgs18Kgs22Kgs
    Dimensions:220 x 240 x 240mm220 x 240 x 240mm220 x 240 x 240mm
    Product Order Code:MCKS-A231MCKS-A232MCKS-A235
  3. Customised Machine

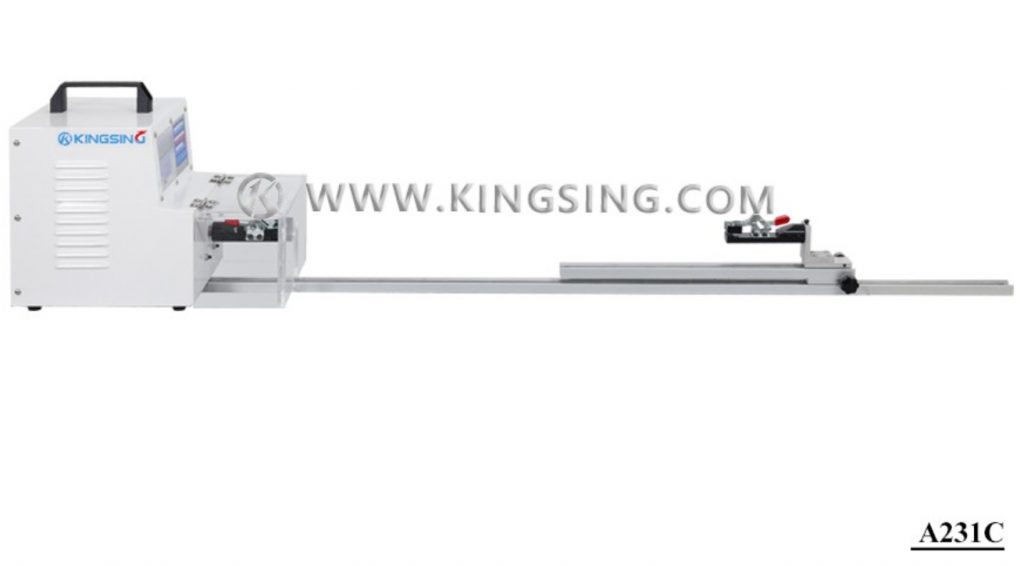

    We are also able to offer a customised Wire Twisting Machine which has an additional wire clamp, Guiding Rail and Guard as per the photos below. If you would be interested in a customised wire twisting machine, please contact us.
