Inexpensive Lever & Push Start Anti-Static (ESD) Electric Brushless Screwdriver Solutions
Inexpensive Range of Lever & Push Start Anti-Static (ESD) Brushless Electric Screwdrivers ranging from 0.01Nm up to 4.90Nm.
- General Details

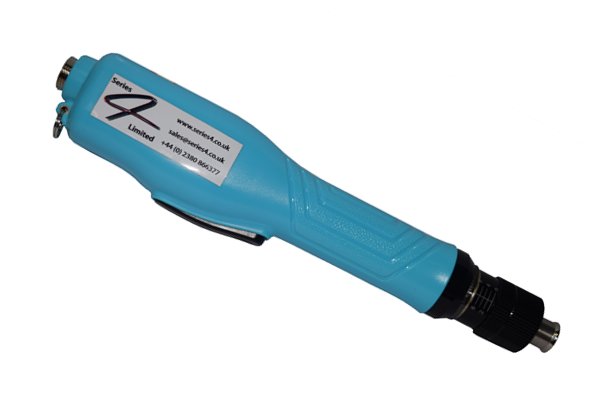

Inexpensive Lever & Push Start Anti-Static (ESD) Electric Brushless Screwdriver Solutions:
This Range of Inexpensive Lever & Push Start Electric Screwdrivers feature a brushless motor which offers a long life span of the Screwdriver and lower maintenance requirements. These Brushless Electric Screwdrivers offer excellent price to performance ratio. Various models are available ranging from 0.01Nm up to 4.90Nm. All of these Screwdrivers come as standard with the relevant power supply and accept screwdriver bits Hex 6.35mm (1/4″).
Warranty & Spare Parts:
Screwdriver Body Warranty: 12 Months
Screwdriver Motor Warranty: 24 Months
Replacement Screwdriver to PSU Lead: SD-3P - Lever Start Models
Model
NumberTorque Range
(Nm)Speed
(Rpm)Input
VoltageWeight
(G)Applicable Screws
(Diameter of Screw)SD-BA200L/ESD 0.01-0.15 650/1000 DC30V 340 M1.0-1.7 SD-BA300L/ESD 0.02-0.34 650/1000 DC30V 340 M1.2-2.5 SD-BA400L/ESD 0.03-0.63 650/1000 DC30V 340 M1.4-2.6 SD-BA450L/ESD 0.10-1.00 650/1000 DC30V 540 M1.4-3.0 SD-BA450LF/ESD 0.10-1.00 1300/2000 DC30V 540 M1.4-3.0 SD-BA500L/ESD 0.20-1.18 650/1000 DC30V 540 M1.6-3.0 SD-BA500LF/ESD 0.20-1.18 1300/2000 DC30V 540 M1.6-3.0 SD-BA550L/ESD 0.29-1.86 650/1000 DC30V 540 M2.3-3.5 SD-BA600L/ESD 0.50-2.45 650/1000 DC30V 680 M2.6-4.0 SD-BA600LF/ESD 0.5-2.25 1300/2000 DC30V 680 M2.6-4.0 SD-BA620L/ESD 0.98-2.94 650/1000 DC30V 680 M2.6-4.5 SD-BA620LF/ESD 0.98-2.94 1300/2000 DC30V 680 M2.6-4.5 SD-BA630L/ESD 0.98-3.43 350/500 DC30V 680 M3.0-5.0 SD-BA700L/ESD 1.47-4.41 350/500 DC30V 680 M3.5-5.5 SD-BA730L/ESD 1.96-4.90 1000 DC30V 680 M4.0-6.0 - Push Start Models
Model
NumberTorque Range
(Nm)Speed
(Rpm)Input
VoltageWeight
(G)Applicable Screws
(Diameter of Screw)SD-BA450P/ESD 0.10-1.0 650/1000 DC30V 540 M1.4-3.0 SD-BA450PF/ESD 0.10-1.0 1300/2000 DC30V 540 M1.4-3.0 SD-BA500P/ESD 0.20-1.18 650/1000 DC30V 540 M1.6-3.0 SD-BA500PF/ESD 0.20-1.18 1300/2000 DC30V 540 M1.6-3.0 SD-BA550P/ESD 0.29-1.86 650/1000 DC30V 540 M2.3-3.5 SD-BA600P/ESD 0.50-2.45 650/1000 DC30V 680 M2.6-4.0 SD-BA600PF/ESD 0.50-2.25 1300/2000 DC30V 680 M2.6-4.0 SD-BA630P/ESD 0.98-3.43 350/500 DC30V 680 M3.0-5.0 SD-BA700P/ESD 1.47-4.41 350/500 DC30V 680 M3.5-5.5 - PSU Specifications
Model
NumberInput
VoltageOutput
VoltageOutput
PowerRated
CurrentWeight
(G)Applicable
ScrewdriverSD-30V40W3P AC110~260V DC24/30V 40W 1.35A 135 BA200L ~ BA400L SD-30V60W3P AC110~260V DC24/30V 60W 2.00A 282 BA450L ~ BA700L
BA450P ~ BA700PSD-30V200W3P AC110~260V DC30V 200W 3.50A 635 BA620LF & BA730L
