Finofix Twincone Enamel Wire Stripper

The Finofix Enamel Wire Stripping Machine is capable of processing between 0.03mm and 0.4mm O.D Enamel Wires with no maximum stripping lengths.

  1. General Details

    Finofix Twincone Enamel Wire Stripper:

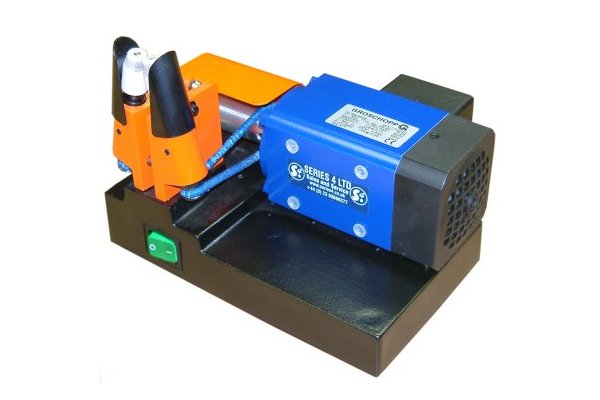

    The Finofix Enamel Wire Stripper is designed for stripping minature coils and fine magnet/enamel wire. The enamelled wire is introduced from above (or from the front) between the rotary, conical glass fibre wheels, the enamel is then removed from the wire. The design of the wheels allow a visible method for making close stripping easier. With a knurled thumb screw the distance of the conical wheels can be stopped to suit the respective wire size. In order to allow for stripping of differenct insulating enamel coatings, 2 types of wheels are available. Stripping to within 1/8″ of a component body are possible with no restriction on stripping length. The finofix strips all types of film insulation. Fast and easy to set up. Wire sizes from 0.03 to 0.4mm.

  2. Technical Data

    Finofix Enamel/Magnet Wire Stripper Technical Data:
    Dimensions: 150 x 230 x 167mm
    Cycles Per Second: 220V (50 Cycles Per Second), 110V (60 Cycles Per Second)
    Weight: 4Kgs
    Voltage: 220-240V (110V available on request)
    Warranty: 12 Months

    Product Order Code:
    MC3100 – Finofix Enamel Wire Stripper
