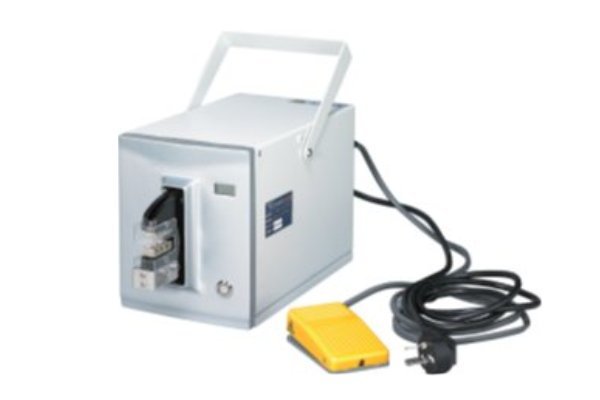

FEK-60EM Electric Crimping Machine

The FEK-60EM Bench Top Electric Crimping Machine is capable of crimping a wide range of crimp terminals and connectors offering superb value for money.

  1. General Details

    FEK-60EM Electronic Crimper:

    The New FEK-60EM Electric Crimping Machine is a newer version EC-23 Electric Crimper. This bench top electric crimper is capable of crimping a wide range of crimp terminals and connectors offering superb value for money. The FEK-60EM Electric Crimper is driven by a constant speed motor which produces high efficiency and high quality on both crimping strength and crimping speed.

    This new crimping machine will accept most universal crimping die sets, this offers huge versatility and eliminates the need to buy machine specific die sets which are often costly and cannot be used in other tools.

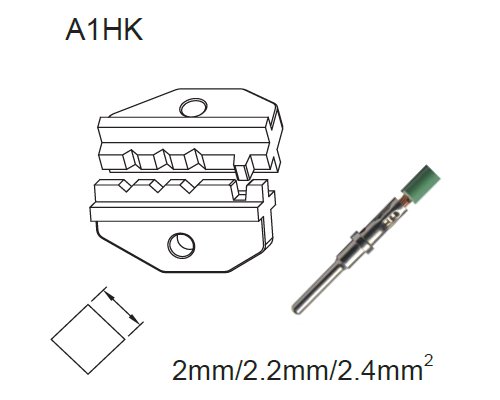

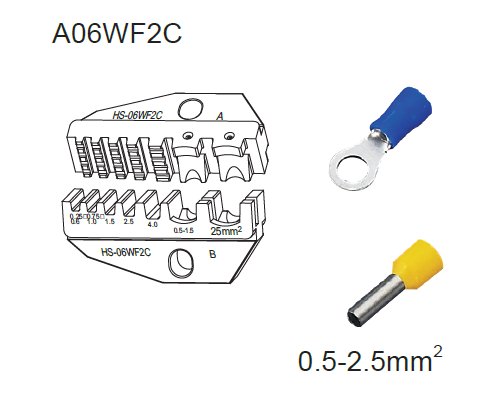

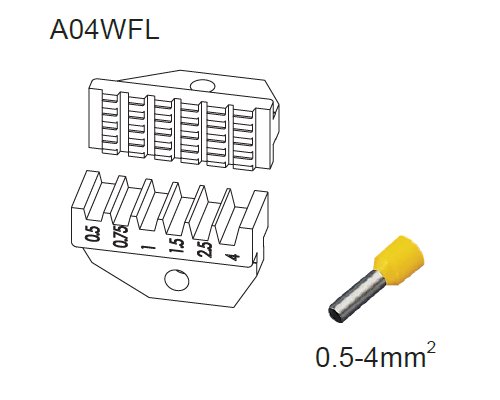

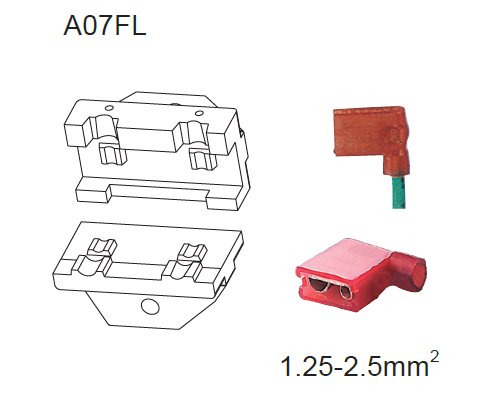

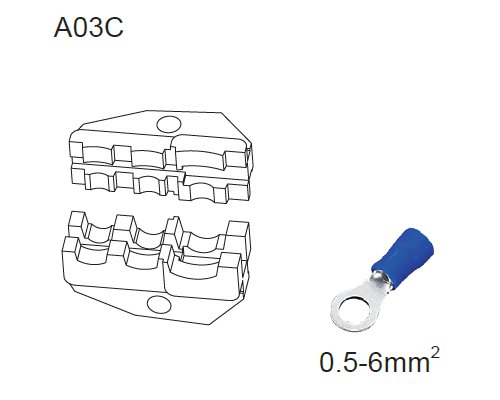

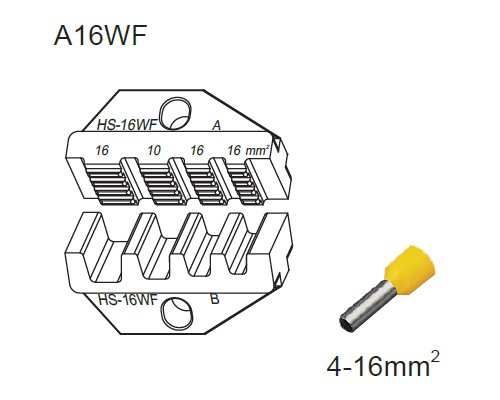

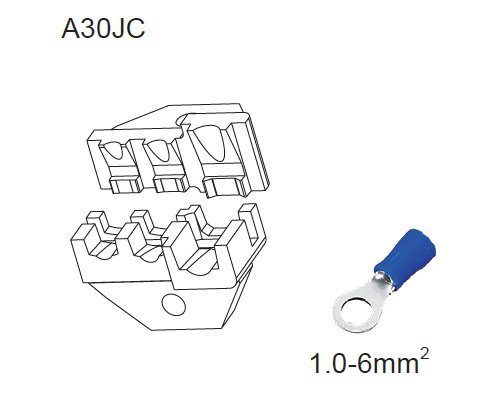

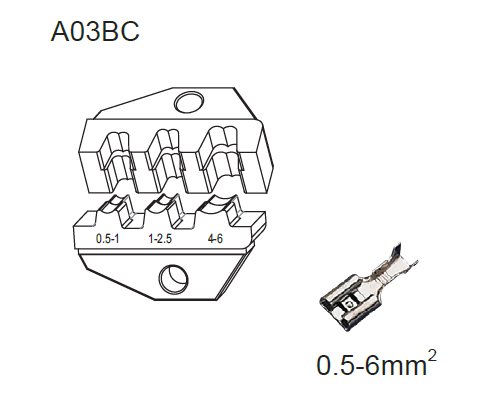

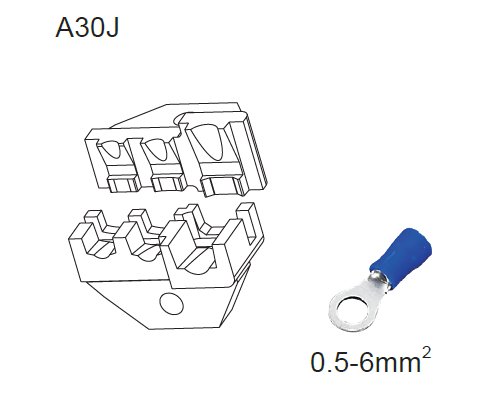

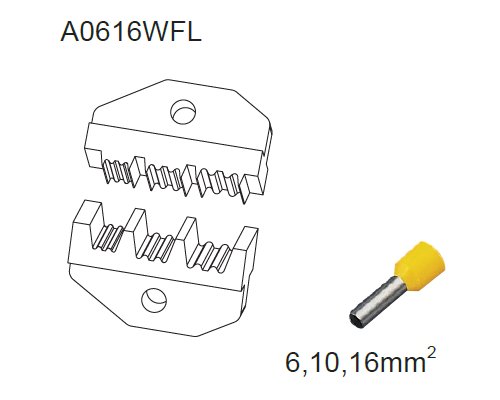

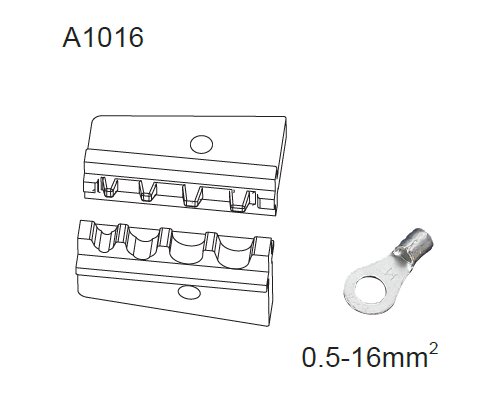

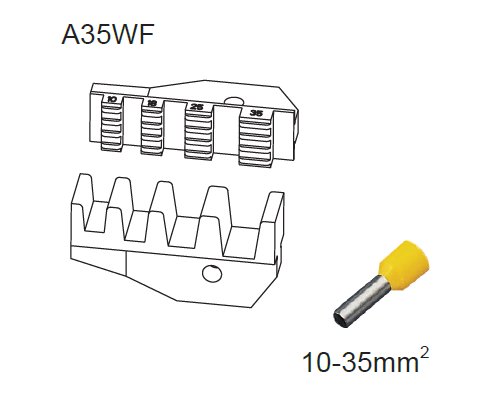

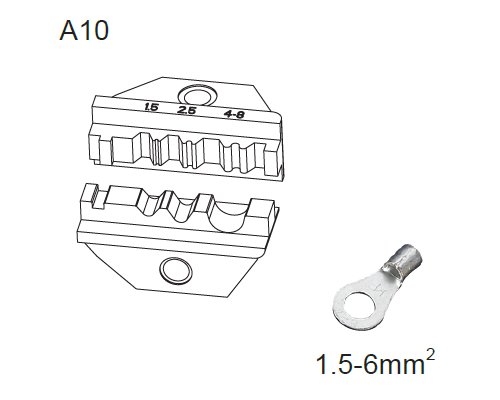

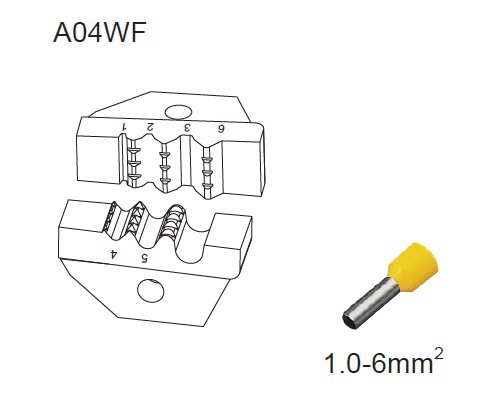

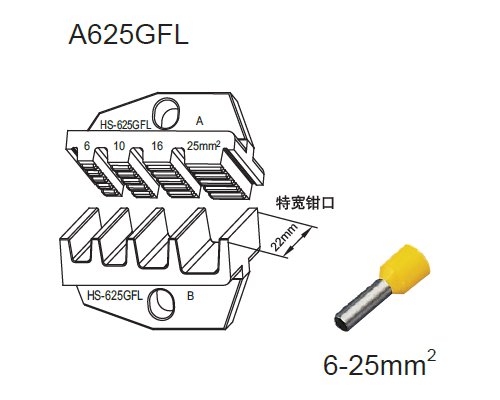

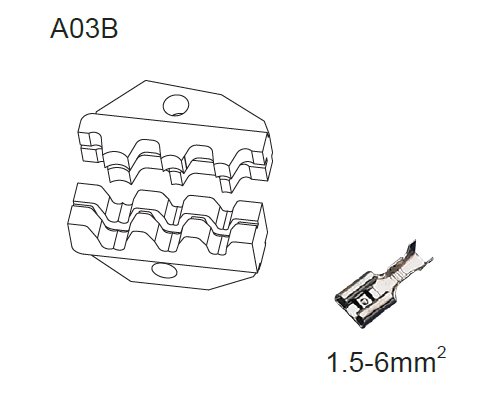

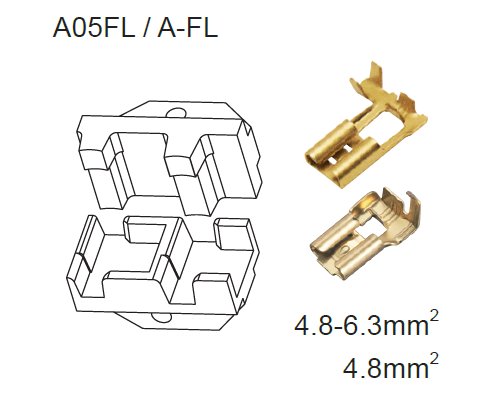

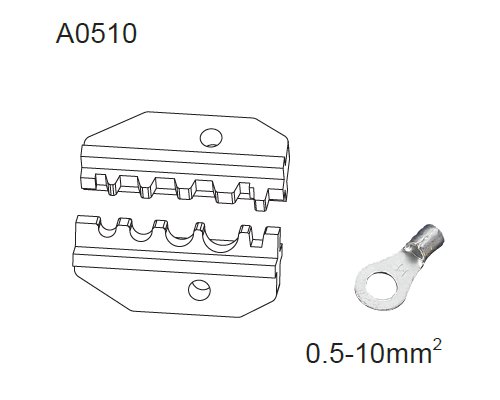

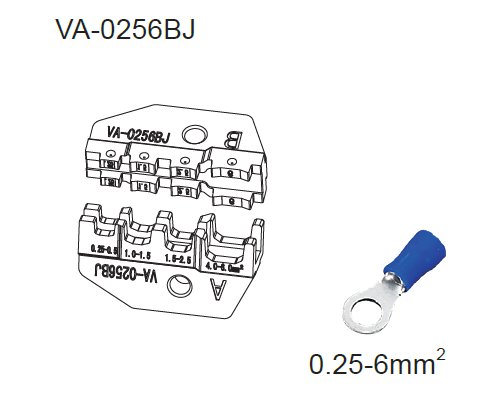

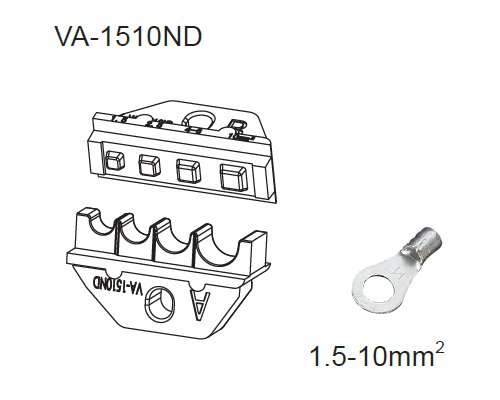

    Available die sets can be found in the photos above.

    Special crimping die sets can also be manufactured if required.  The FEK-60EM Electric Crimper comes equipped with a protective guard, power cord, foot switch and operators manual.

  2. Technical Data

    FEK-60EM Electric Crimping Machine Technical Data:
    Max Crimping Range: Insulated Terminal 6mm²
    Crimping Frequency: 1.5secs
    Max Crimping Force: 15KN
    Voltage: 220V/110V/50Hz
    Dimensions: 150 x 180 x 330mm
    Weight: 9.3Kgs
    Warranty: 12 Months

    Product Order Code:

    MC0263 – FEK-60EM Electronic Crimping Machine
