The FEK-5ND Pneumatic Crimping Machine is an economical bench top crimping machine suitable for a wide range of connectors and presents the ideal step up from manual crimping.
- General Details
FEK-5ND Air Operated Crimper:
The FEK-5ND Pneumatic Crimping Machine is an economical bench top crimping machine suitable for a wide range of connectors and presents the ideal step up from manual crimping, delivering a speed 10 times quicker than can be achieved using a hand tool. This Crimping Machine comes supplied with a foot-switch and crimp die of your choice, produced in a high quality, heat treated alloy steel. In addition this crimping machine will accept most universal crimping die sets offering huge versatility and eliminating the need to buy machine specific die sets, customised dies sets can also be manufactured if required.

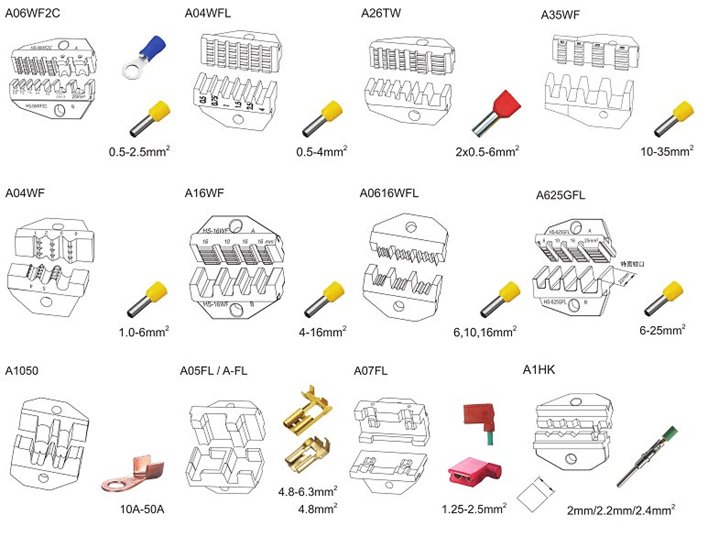

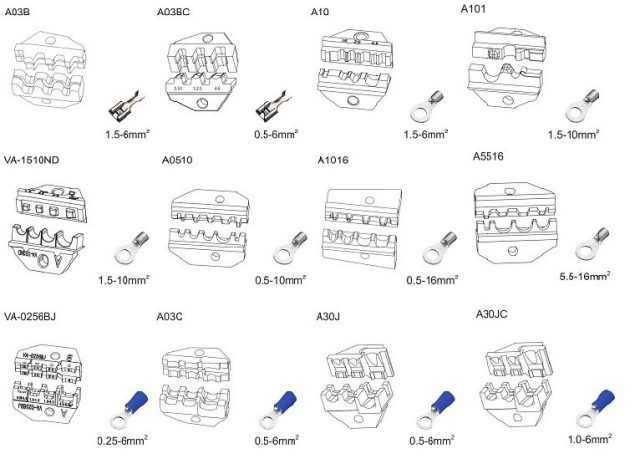

Please see photos above regarding the available die sets for the FEK-5ND Pneumatic Crimper.
The FEK-5ND Air Crimper is equipped with a pressure regulator to ensure consistency and quality of crimping, the machine is light weight and easily portable and capable of up to a maximum of 1200 crimps per hour.
- Die Set Options
- Technical Data
FEK-5ND Pneumatic Crimping Machine Technical Data:
Max Crimping Range: Insulated Terminal up to 6mm²
Crimping Capabilities: up to 1200 Per Hour
Required Air Pressure: 75-105 PSI
Dimensions: 230 x 187 x 100mm
Warranty: 12 Months
Product Order Code:
MC0262 – FEK-5ND Pneumatic Crimping Machine
- Product Video
