The Evo-Measure Measuring Meters possess low friction, positive control guiding components which assure the straight line contact with the measuring wheel. Accuracy of these Measuring Meters is +/- 1%.
- General Details
Evo-Measure Wire Measuring Meter
The Evo-Measure Wire Measuring Meter possess low friction, positive control guiding components which assure the straight line contact with the measuring wheel, the most important factor in measurement accuracy. These new Measuring Meters are capable of processing a variety of materials such as Wire, Rope, Cable, Hose and many other flexible materials.
The Measuring Meters serrated wheel along with its steel pressure spring guarantees an accurate reading without the hassle of slipping. The clamping force can also be adjusted by setting or releasing the spring tension. With one turn of the counter knob/lever, the counter will reset to zero.
Changing the diameter of the material being measured is quick due to the interchangeable guide tubes installed on the measuring meter.
With the design of these measuring meters, the meter itself can either be mounted to a bench without any additional parts (such as a bench mount) due to the Measuring Meters design, however if you wish to have this mounted to a bench stand, this is available. The overall height of the available bench stand is 350mm (longer stand available on request).
- Technical Data
Evo-Measure Measuring Meters Technical Data:
Cable Diameter: 0.4-20mm (0.01-0.78″) OD
Interchangeable Guide Tubes: 7 & 20mm (1/4 & 8/9″) ID
Maximum Measuring Length: 999 Meters (9999 Ft)
Accuracy: +/- 10mm (+/- 1%)
Max Running Speed: 20m/min
- Product Order Codes
Product Order Codes:
MUK1410-S – 1410S Evo-Measure Imperial Measuring Meter – Steel Roller
MUK1410-P – 1410P Evo-Measure Imperial Measuring Meter – Polyurethane Roller

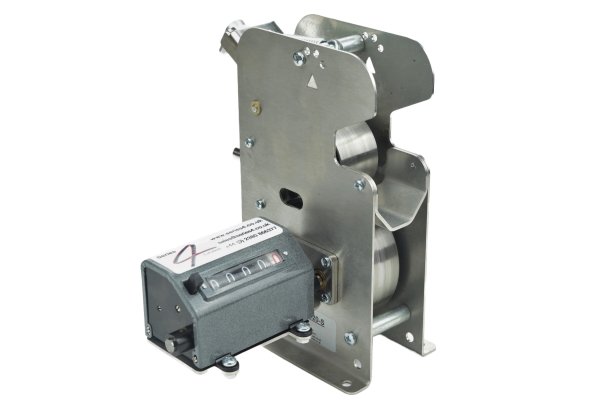

MUK1420-S – 1420S Evo-Measure Metric Measuring Meter – Steel Roller

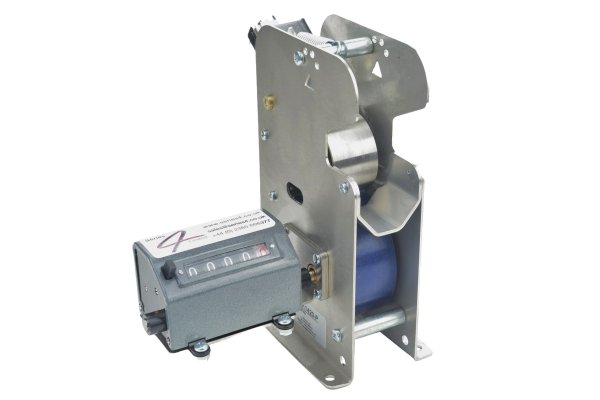

MUK1420-P – 1420P Evo-Measure Metric Measuring Meter – Polyurethane Roller

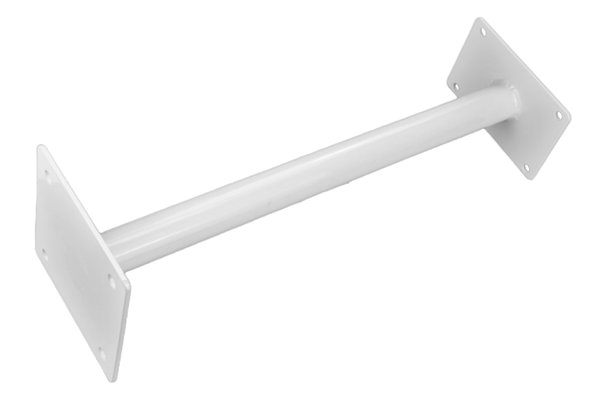

UK1420 – 350mm Bench Stand for Evo-Measure Measuring Meters
