The County S Evo Component Counting Machine is a motorized machine for SMD Component Counting. This machine works in a simple way by counting the holes on the tape.
- General Details

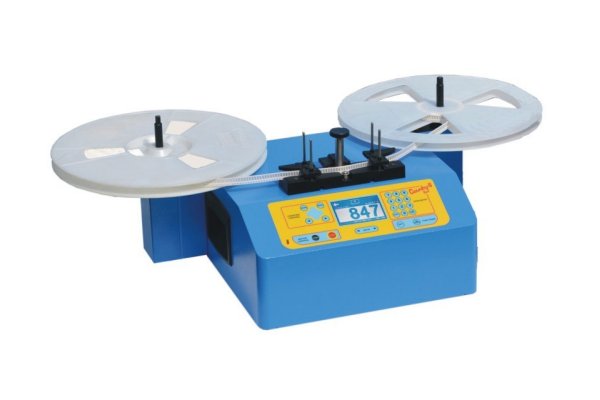

County S Evo SMD Component Counter:
The County S Evo Component Counting Machine is a motorized machine for SMD Component Counting. This machine works in a simple way by counting the holes on the tape. This Component Counter can operate in two different ways. (Totalizer Mode) Components are counted from a zero reference, tape feed is motorized and the counter automatically stops at the tape end to prevent loss of the total. (Preset Mode) The desired component number is keyed on the keyboard and the counter automatically stops when it reaches the corresponding component.
All functions on the County S Evo Component Counting Machine are easy to operate by the help of interactuve messages on the display, while system status is monitored by means of LED’s near the command keys. Motion control procedures are extremely simple, while special functions are grouped in a seperate section on the keyboard in order to prevent operator errors. The memory function allows partial counting for the same component type and memory recall can show at any time the memory contents without loss of the actual counting data. Step number indication (division factor) is always present, showed on a two digit display. An adjustable empty reel is also available. Made from aluminium inner 120mm, outer 330mm with height adjustment from 8~56mm.

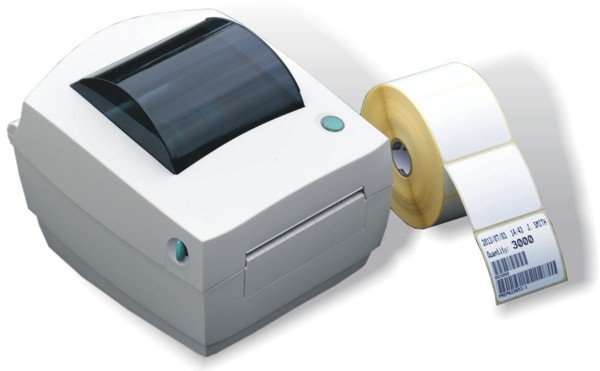

Optional Thermal Printer Optional Adjustable Empty Reel
- Technical Data
County S Evo Component Counting Machine Technical Data:
Display: 6 Digits, High Efficiency LEDs
Max Counting Speed: 100pcs/sec
Hole per Component: From 1-99 (Factor Division)
Max Tape Height: 56mm
Max Reel Diameter: 400mm
Counting: Up & Down
Partial Counting Memory
Variable Feeding Speed
Step by Step (1 Component at a time)
RS232C Serial Output for host computer
Dimensions: 510 x 380 x 200mm (270mm inc reel posts)
Product Order Codes:
MOL8301.131 – County S Evo Component Counter
MOL8301.133 – County S Evo Component Counter with Empty Pocket Checker
