The 450S/800MB/800RM Cable Spooler devices are designed for winding materials such as cables, wires, tubing etc onto empty spools
- General Details
450S/800MB/800RM Cable Spooler
The 450S/800MB/800RM Cable Spoolers are designed for winding materials such as cables, wires, tubing etc onto empty spools. With 3 different spooling devices available, loading capacities can reach up to 100kgs of wire, cable or tubing and spool diameters up to 800mm depending on which cable spooler is purchased.
The Cable Spoolers can also be used as a de-reeler to feed cable, wire or tubing into an Automatic Cutting Machine or Cut & Strip Machine.
- 450S Cable Spooler Specifications

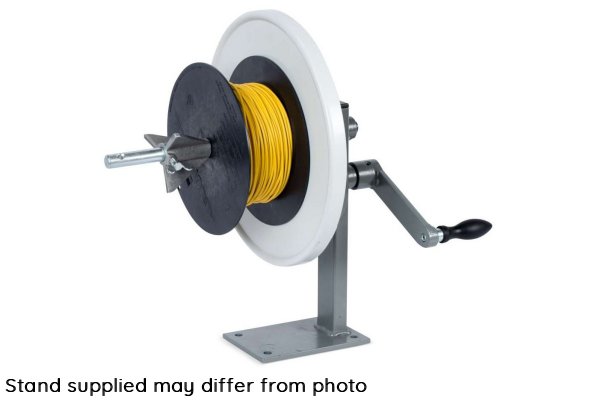

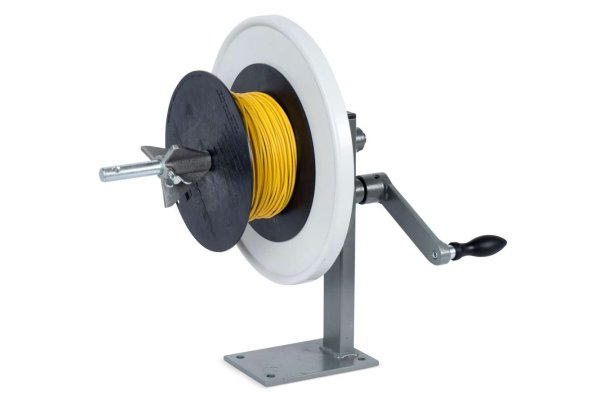

450S Cable Spooler Specifications
Model Number 450S Loading Capacity Max 10Kgs Spool Plate Diameter 300mm Spool width at bore hole 80mm 165mm Spool width at bore hole 50mm 150mm Spool width at bore hole 25mm 135mm Spool Winding Axle 16mm OD x 200mm Long Weight 4.1Kgs Part Number MCKM-TIS450S
- 800MB/800RM Cable Spooler Specifications

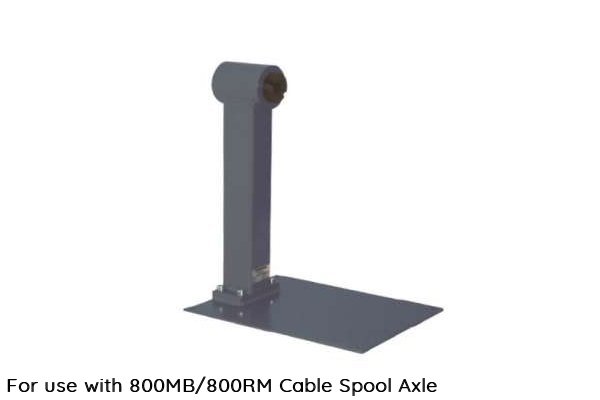

800MB/800RM Cable Spooler Specificcations
Model Number 800MB (Bench Mounted) 800MB (Floor Mounted) 800RM (Bench Mounted) 800RM (Floor Mounted) Spool OD Max 800mm Max 800mm Max 800mm Max 800mm Spool Width Max 395mm (at bore hole 40mm)
Max 470mm (at bore hole 80mm)
Max 430mm (at bore hole 35mm)
Max 445mm (at bore hole 50mm)
Max 475mm (at bore hole 85mm)
Drum Bore 40-80mm 40-80mm 35-85mm 35-85mm Spool Winding Axle 30mm OD 30mm OD 30mm OD 30mm OD Load Capacity Max 60Kgs Max 60Kgs Max 100Kgs Max 100Kgs Axle Weight 8Kgs 8Kgs 10Kgs 10Kgs Stand Weight 20Kgs 26Kgs 20Kgs 26Kgs Stand Dimensions (LxWxH) 450mm x 330mm x 580mm 450mm x 330mm x 1065mm 450mm x 330mm x 580mm 450mm x 330mm x 1065mm Part Number MCKM-TIS1000800MB MCKM-TIS1000H800MB MCKM-TIS1000800RM MCKM-TIS1000H800RM
